| Maximum Width Of Cut | 635mm ( 25" ) |
| Maximum Thickness Of Cut | 200mm ( 8" ) |
| Minmum Thickness Of Cut | 10m |
| Minmum Lenght Of Cut | 310mm |
| Knife Nos. On Bottom Cutterhead | 156pcs |
| Knife Sizes | TCT 15x15x2.5mm |
| Cutterhead Diameter | Ø126mm |
| CutterHead Speed | 5000RPM |
| Variable Feed Speed-inverter | 8-24m/min |
| Dust Hood Outlet Diameter | 6" X 2 |
| Table Surface Area | 27"x103" |
| Top Cutterhead Drive Motor | 20( 25HP) |
| Buttom Cutterhead Drive Motor | 15( 20HP) |
| Feed Drive Motor | 3HP |
| Upper Mechanism Elevation Motor | 1/2HP |
| Machine Dimensions(LxWxH) | 2700x1145x1720mm |
| Net Weight | 3000kg |
| Packing Dimensions(LxWxH) | 2780x1240x1940mm |
| Gross Weight | 3500kg |
| ※ To ensure technological excellence, specifications are subject to change without prior notice。 | |
 |
 |
 |
|
Well Laid-out pressure spikes The pressure spikes are in an overlapped layout with a minimum of gaps that hold the workpiece firmly and evening ensuring shake-free feeding, even for short workpiece. |
No.1 Helical cutterhead The helical cutterhead is precision machined Provides extremely fine surface of cut with minimum noise. The helical cutterhead is fitted with throw-away T.C.T knife bits. |
Digital positioning control The thickness of cut can be controlled by a digital positioning control. Once the preset position is reached, the table elevation stops automatically. |
 |
 |
 |
|
Automatic lubricator The automatic lubricator delivers frequent lubrication oil to the caterpillar chain. |

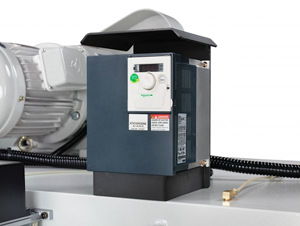

Feeding inverter Digital display and quick operation to reduce wear on mechanical gearbox. |
Gear reducer Reduce wear caused by temperature rise and improve efficiency of power transmission. |
